Bent PTO Shaft

1928 Views 2 Replies 2 Participants Last post by sdschell, Nov 22, 2019

sdschell

Discussion Starter · Nov 18, 2019

I bent the Pipe on my Angle Broom PTO Shaft. What is the trick to getting it off the Broom?

I removed the bolt at the Base of the PTO Shaft but it still seems to be caught on something? is there another PIN I need to remove?

Save

1 - 3 of 3 Posts

KeviNH

· #2 · Nov 20, 2019 (Edited)

See if you can find a copy of the Bobcat/Polaris Angle Broom Service Manual

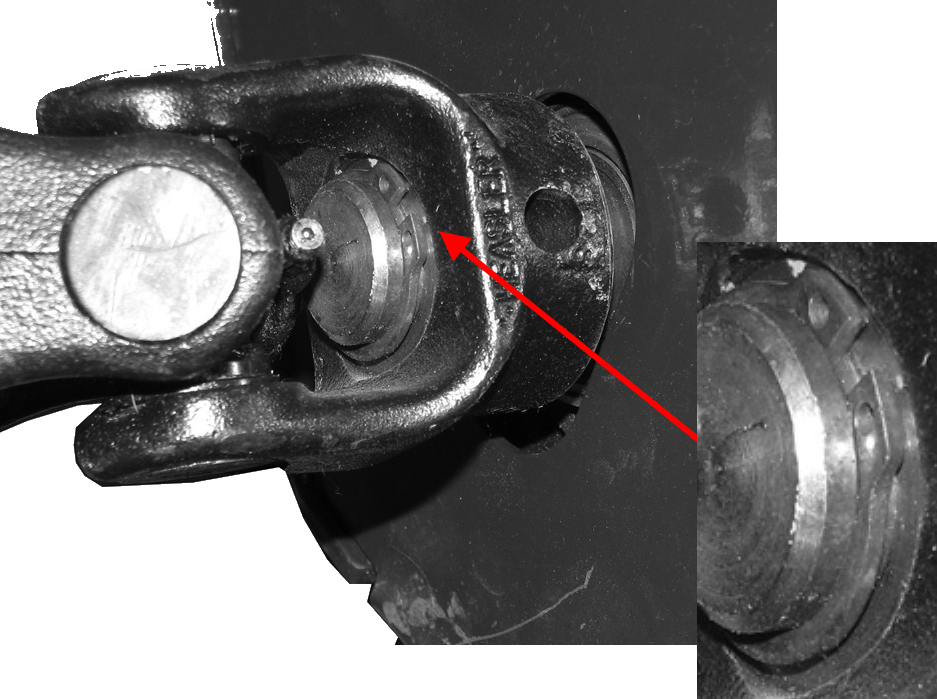

The PTO shaft is held on by both the bolt, and also a hidden snap ring. Disassembly is covered in the Angle Broom "Service Manual"

This is a good case for buying a cheap pair of "snap ring pliers" from Hazard Fraught. Trying to remove them without at least angled needle-nose is an exercise in frustration.

See less See more

Save

Reactions: 1

sdschell

Discussion Starter · #3 · Nov 22, 2019

Thanks, I figured it would be in the service manual, I tried searching for it online with no luck.
